Biomed Technology is a professional company incorporated to promote high quality, cost effective CATHLAB Sales, Service and Repair. Our team has extensive experience of over 10 years in medical imaging service industry and installed all over India and sales to world.
We specialized in sales, service for CATHLAB machines are Siemens, Philips, Hitachi, GE and Toshiba. In addition to the innovative service and parts solutions we can assist you from end to end on your imaging project requirements including system purchase, site planning, relocation, installation and applications. Our clients range from big and small hospitals, nursing homes, diagnostic centers and individuals running diagnostic facilities. CATHLAB models are
PHILIPS:Allura Xper FD10, Allura Xper FD20
GE:GE Innova 2100, Innova 3100
SIEMENS:Artis ZEE, Artis DFC
SPECIFICATION PARAMETER

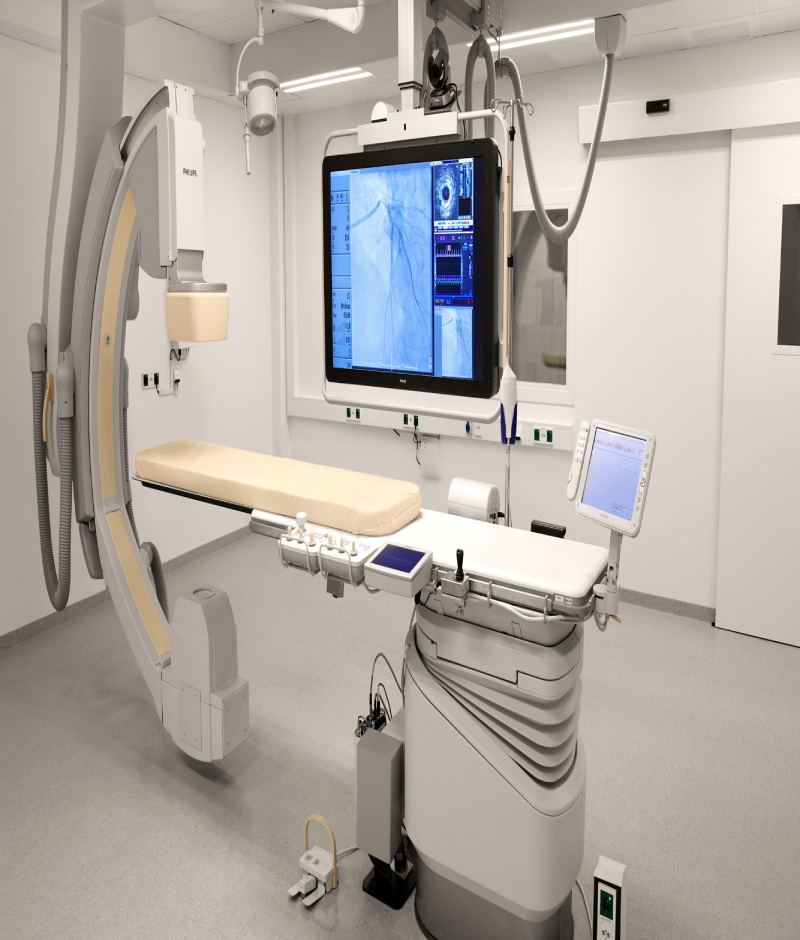

Brand Philips MODEL Allura Xper FD10 CONFIGURATION Floor or ceiling G Depth(cm) 105 Sid range(cm) 86.5-123 (34-48.4) Motorized/manual Motorized General system 480 VAC; 60 Hz; 3-phase X-ray generator Supplied by system Movement 4-way floating, Xper table Max frame rate, fps 60 ower rating, kw @ 100 kvp 100 Radiographic ma 1-1,250 Radiographic kv 40-125 Fluoroscopic(ma) 60 mA nominal for pulsed fluoro Fluoroscopic(kv) 40-125 Heat storage capacity(hu) 5400000 Heat dissipation rate(hu/min) 910000
SPECIFICATION PARAMETER

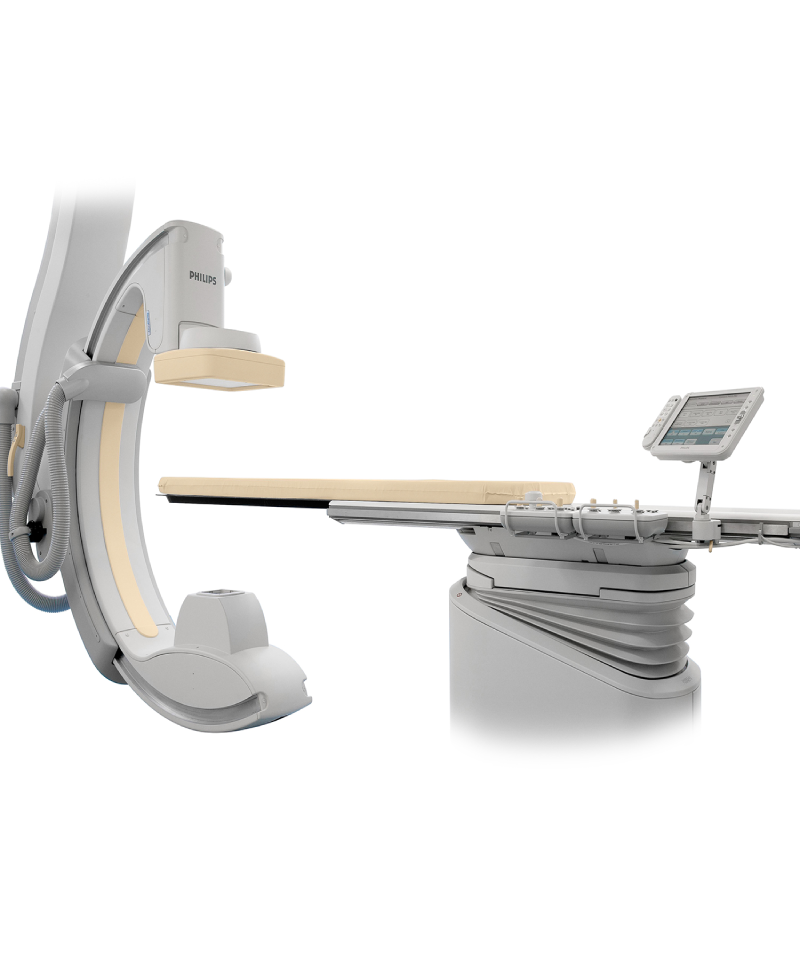

Brand Philips MODEL Allura Xper FD20 CONFIGURATION C (CLEA) Depth(cm) 95 Cranial-to-caudal angulation(deg) 90/90 Sid range(cm) 89.5 -119.5 Motorized/manual Motorized General system 480 VAC; 60 Hz; 3-phase X-ray generator Supplied by system ROOM SIZE NEEDED(M) 7.6 x 5.3 Max frame rate, fps 60 power rating, kw @ 100 kvp 100 Radiographic ma 1-1,250 Radiographic kv 40-125 Fluoroscopic(ma) 60 mA nominal for pulsed fluoro Fluoroscopic(kv) 40-125 Heat storage capacity(hu) 5400000 Heat dissipation rate(hu/min) 910000 Cooling method Recirculating oil
SPECIFICATION PARAMETER

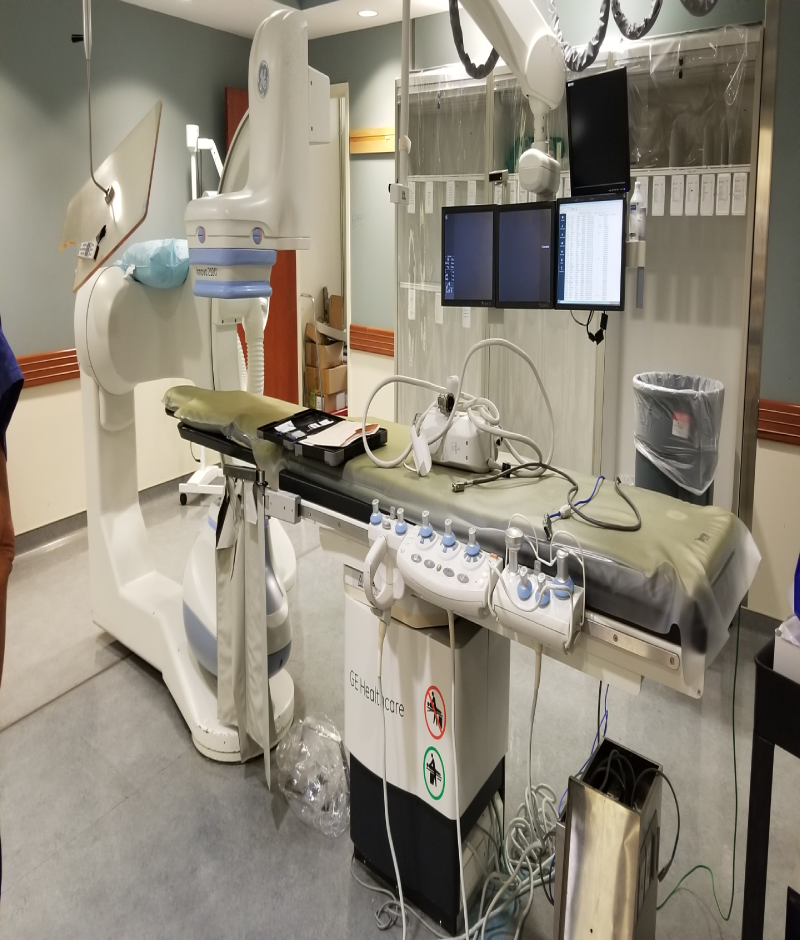

Brand GE MODEL Innova 2100 Type 3-axis,floor-mounted L/offset C Depth(cm) 107 Park capability ±95° L-arm rotation Sid range(cm) 82.6-116.1 Motorized/manual Motorized Lao projection (PA GANTRY) 105 Rao projection (PA GANTRY) 117 Movement 8-way horizontal float power rating, kw @ 100 kvp 100 Radiographic ma 1-1,000 Radiographic kv 40-125 Fluoroscopic(ma) Automatic Fluoroscopic(kv) 60-120 1024 x 1024, images 36000 Cooling method(X-RAY TUBE) Oil/H2O closed loop
SPECIFICATION PARAMETER

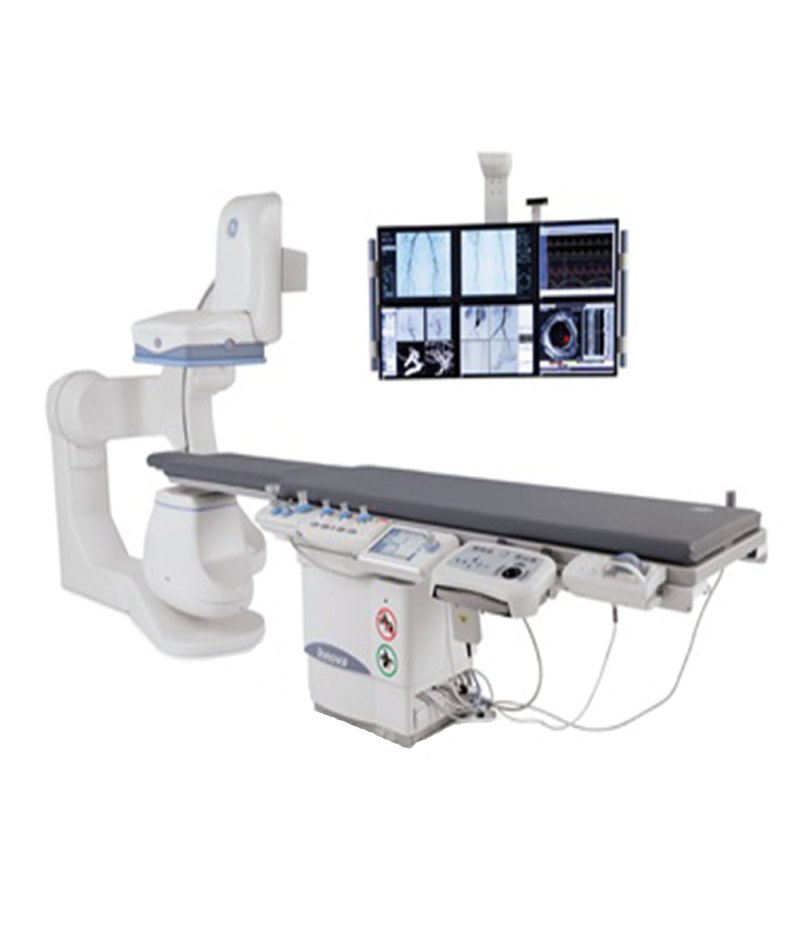

Brand GE MODEL Innova 3100 Type 3-axis,floor-mounted L/offset C Depth(cm) 107 Park capability ±95° L-arm rotation Sid range(cm) 82.6-119.3 Motorized/manual Motorized General system 480 VAC; 60 Hz; 3-phase Movement 8-way horizontal floating Max frame rate, fps 60 power rating, kw @ 100 kvp 100 Radiographic ma 10-1,000 Radiographic kv 40-125 Fluoroscopic(ma) Automatic Fluoroscopic(kv) 60-120 Heat storage capacity(hu) 5100000 Cooling method(X-RAY TUBE) Oil/H2O closed loop
SPECIFICATION PARAMETER

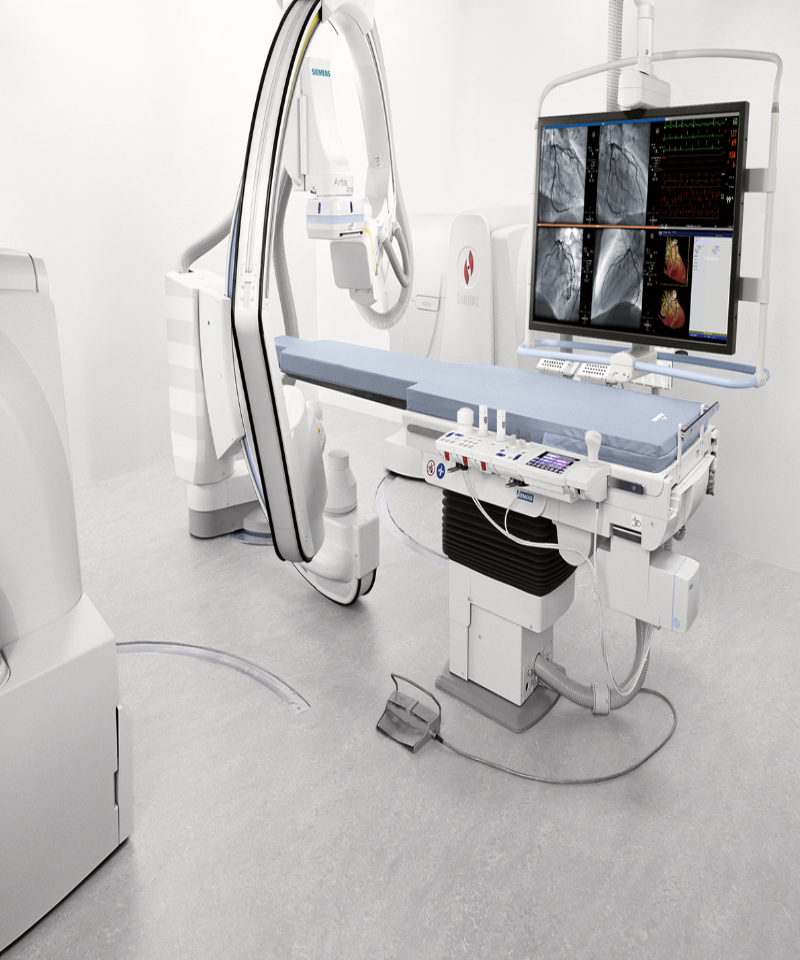

Brand Siemens MODEL Artis zee floor-mount for IR Type Single plane Depth(cm) 92 Rao projection +/-130 Lao projection 120 at 25/sec Sid range(cm) 90-120 Motorized/manual Motorized Power rating(kw) Power according to IEC 15kW,40kW,80kW; nominal power 18kW,52kW,100kW Movement 4-way horizontal float X-ray density < 1mm Al power rating, kw @ 100 kvp 100 ROOM SIZE NEEDED(M) 5 x 5.9 Radiographic kv 51-125 Fluoroscopic(ma) 0.1-24 Fluoroscopic(kv) 51-125 Heat storage capacity(hu) 2,000,000 anode;2,400,000 housing Cooling method(X-RAY TUBE) Oil/H2O closed loop
SPECIFICATION PARAMETER

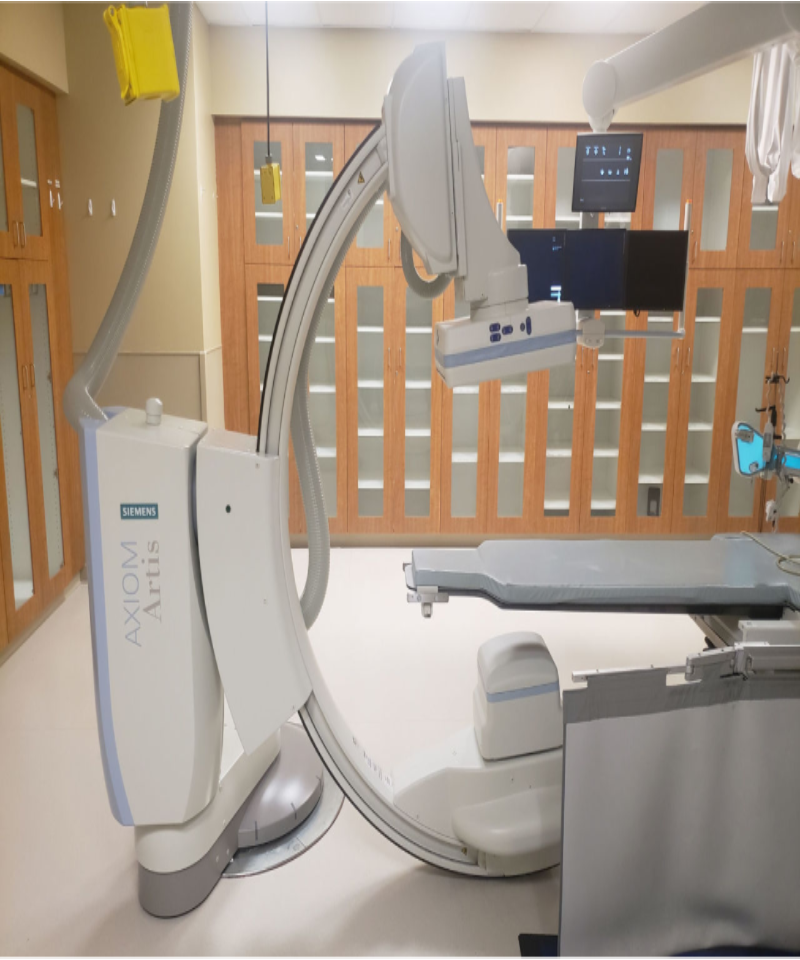

Brand Siemens MODEL Axiom Artis dFC Tilt speed +4.5 and -1.5 Depth(cm) 93 FDD range (cm) 53 to 83 Nominal output (kW) 100 Radiographic 50 to 125 Fluoroscopic 50 to 125 Maximum tube current(mA) 1000 Fluoro pulse: frequency(pps) 10, 15 and 30 Fluoroscopy kV and mA control Automatic Insert type MEGALIX Cat Focal spot sizes (mm) 0.4/0.8 Minimum room size (w x l x h)(m) 5.9 x 6.5 x 2.5 Digital image matrix (pixels) 1024 x 1024 Image bit depth 12
