Biomed Technology is a professional company incorporated to promote high quality, cost effective CT Scanner Sales, Service and Repair. Our team has extensive experience of over 10 years in medical imaging service industry and installed all over India and sales to world.
We specialized in sales, service for CT machines are Seimens, Philips, GE and Toshiba. In addition to the innovative service and parts solutions we can assist you from end to end on your imaging project requirements including system purchase, site planning, relocation, installation and applications. Our clients range from big and small hospitals, nursing homes, diagnostic centers and individuals running diagnostic facilities.

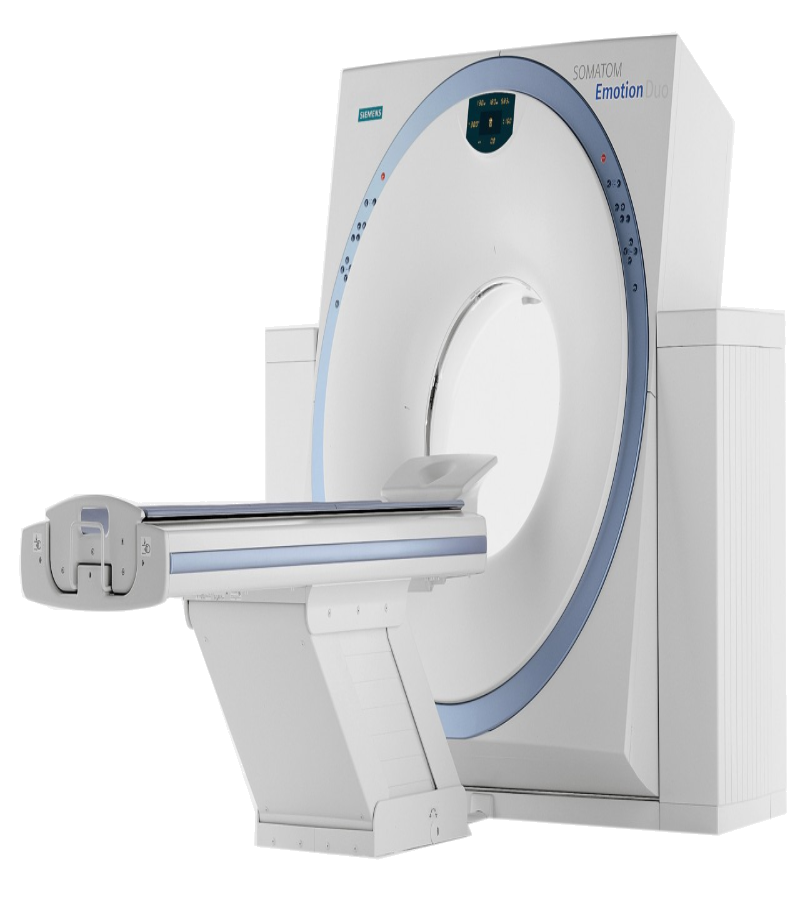

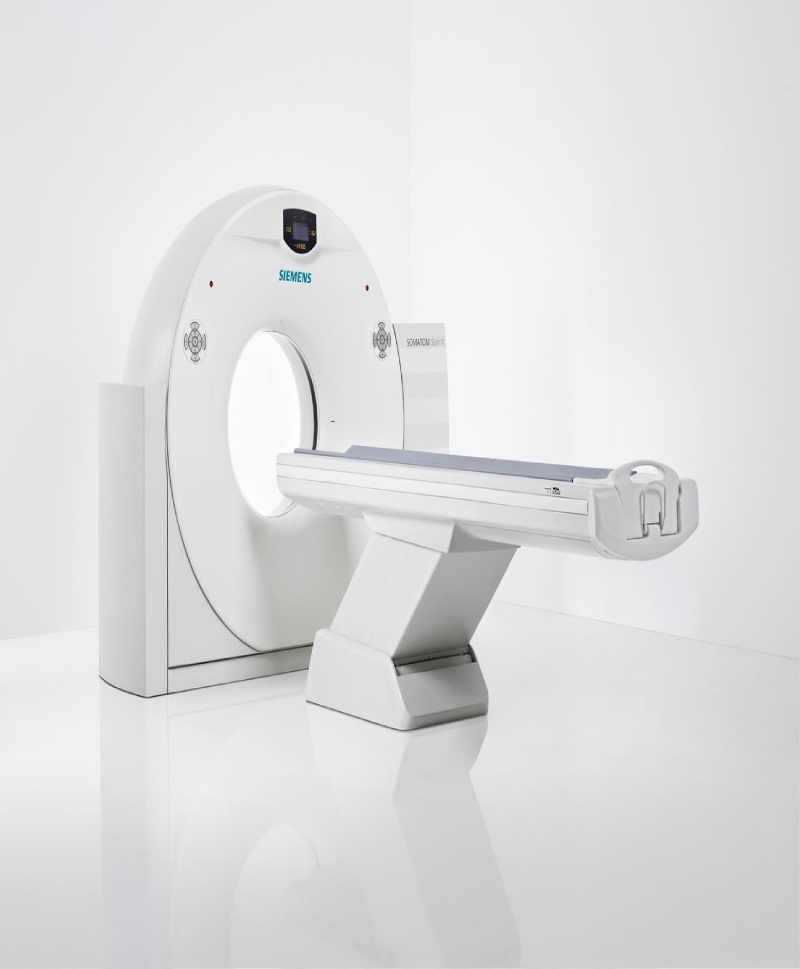

SIEMENS:Somantom Definition AS+ 128, Somantom Sensation 64, Somantom Definition AS 64, Somantom Sensation 16, Somantom Emotion 16Somantom Sensation 4, Somantom Emotion Duo, Somantom Sprit,

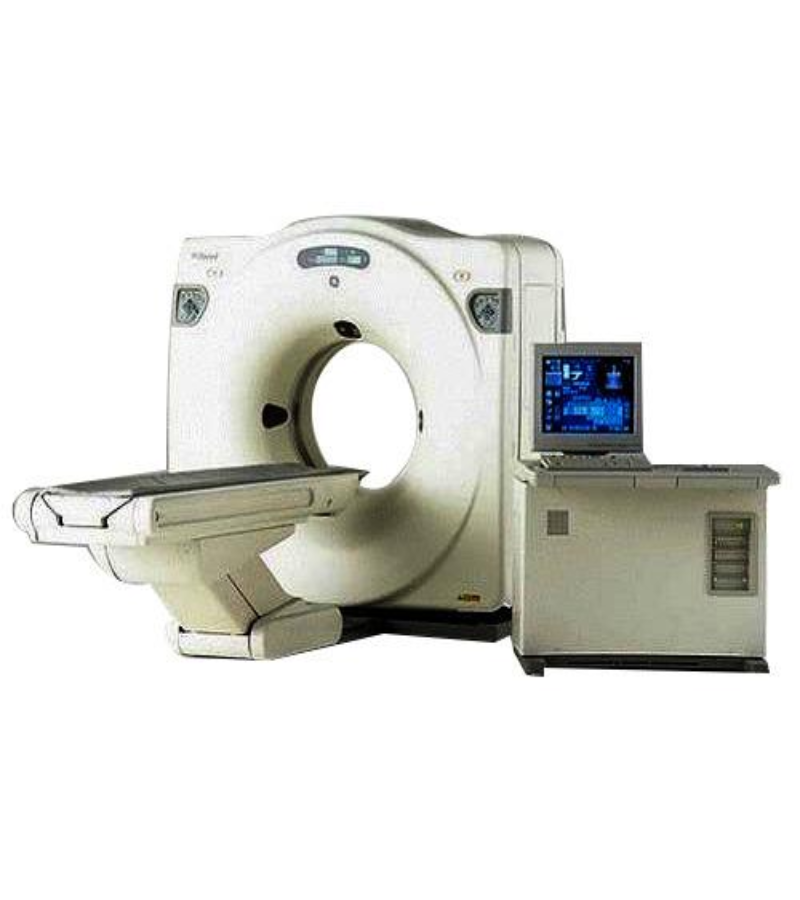

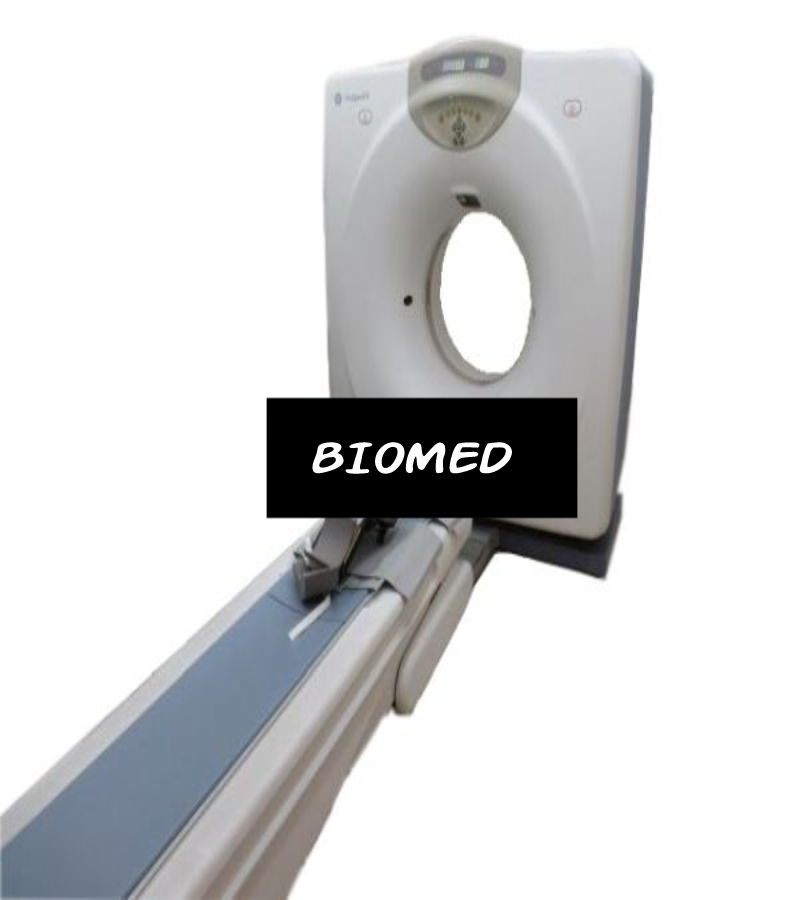

GE:OPTIMA 660, Light Speed 64, Light Speed 16, Bright Speed 16, Bright Speed ELITE 16, Light Speed Ultra 8, Light Speed QXI 4, High Speed NXI-NXI-CT/e Pro single, High Speed LXI-DXI FXI-ZXI-CT/e Pro dual, Prospeed single,
TOSHIBA:Toshiba Aquilion PRIME-160 slice CT, Toshiba Aquilion ONE-320 slice CT, Toshiba Aquilion 16 slice CT, Toshiba Aquilion CX 128 slice CT, Toshiba Asteion Super 4 slice CT
PHILIPS:PHILIPS Brilliance 16, PHILIPS MX 16 EVO, PHILIPS Brilliance 64, PHILIPS Brilliance 40, PHILIPS Ingenuity 128
SPECIFICATION PARAMETER
Brand Siemens No. of slices 128 slices Geometry Slip Ring Detectors, type Multislice UFC No. of rows 64w/128 channels Gantry dimensions (H x W x D), cm 198 x 238 x 93 Gantry Aperture 78cm Gantry tilt(deg) ±30 Heat storage 0 MHU (0.6 MHU capacity combined with 7.3 MHU/min(5,400 kJ/min) cooling rate is comparable to the performance of a conventional tube with approximately 50 MHU (37,000 kJ) anode heat storage capacity) kW output 80(100 optional) kVp range 70,80,100,120,140 Max scan time, sec 160 Max scan volume, cm 200 Scan FOVs(cm) 50

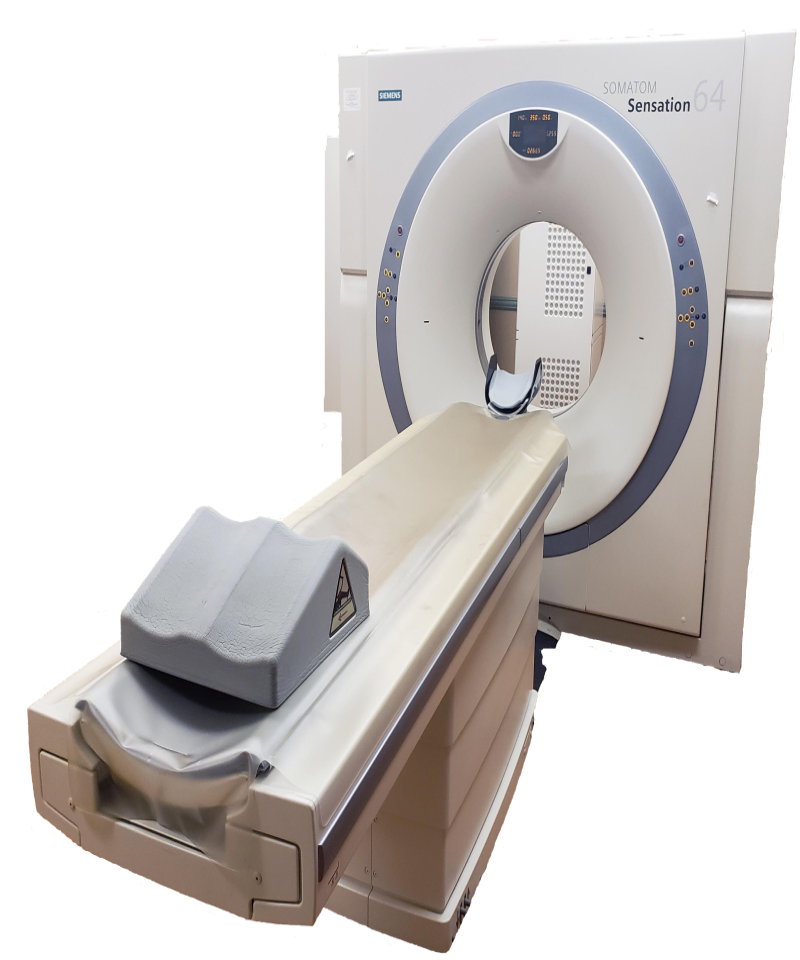

SPECIFICATION PARAMETER
No. of slices 64 slices Brand Siemens Gantry Aperture 78cm Gantry tilt 30 -+ Scan Thickness 0.1-10mm Scan Speed 0.33-1.0sec Scan KVP 80,100,120,140kv Scan mA upto 500mA Tube Capacity 7.3 mhu Tube name STARATION Detector Type multislice UFC Scan FOV 78cm Dicom YES Recommended Below 80 Case

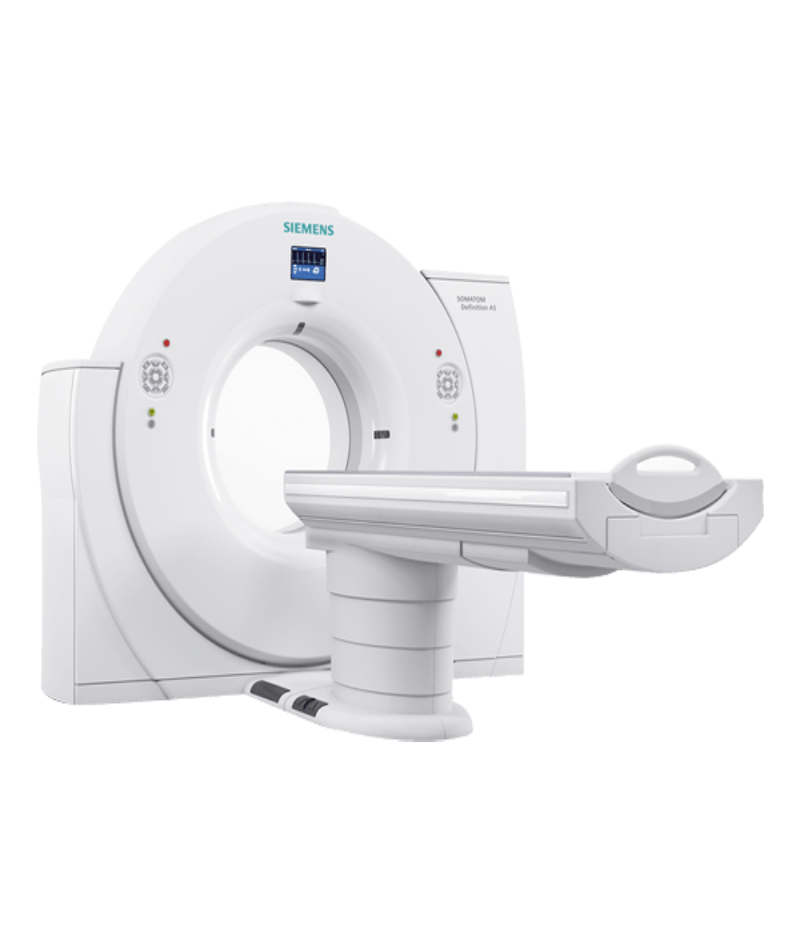

SPECIFICATION PARAMETER
Brand Siemens No. of slices 64 slices Geometry Slip Ring Detectors, type Multislice UFC No. of rows 32w/64 channels Gantry dimensions (H x W x D), cm 198 x 238 x 93 Gantry Aperture 78cm Gantry tilt(deg) ±30 Heat storage 0 MHU (0.6 MHU capacity combined with 7.3 MHU/min(5,400 kJ/min) cooling rate is comparable to the performance of a conventional tube with approximately 50 MHU (37,000 kJ) anode heat storage capacity) kW output 80(100 optional) kVp range 70,80,100,120,140 Max scan time, sec 160 Max scan volume, cm 200 Scan FOVs(cm) 50

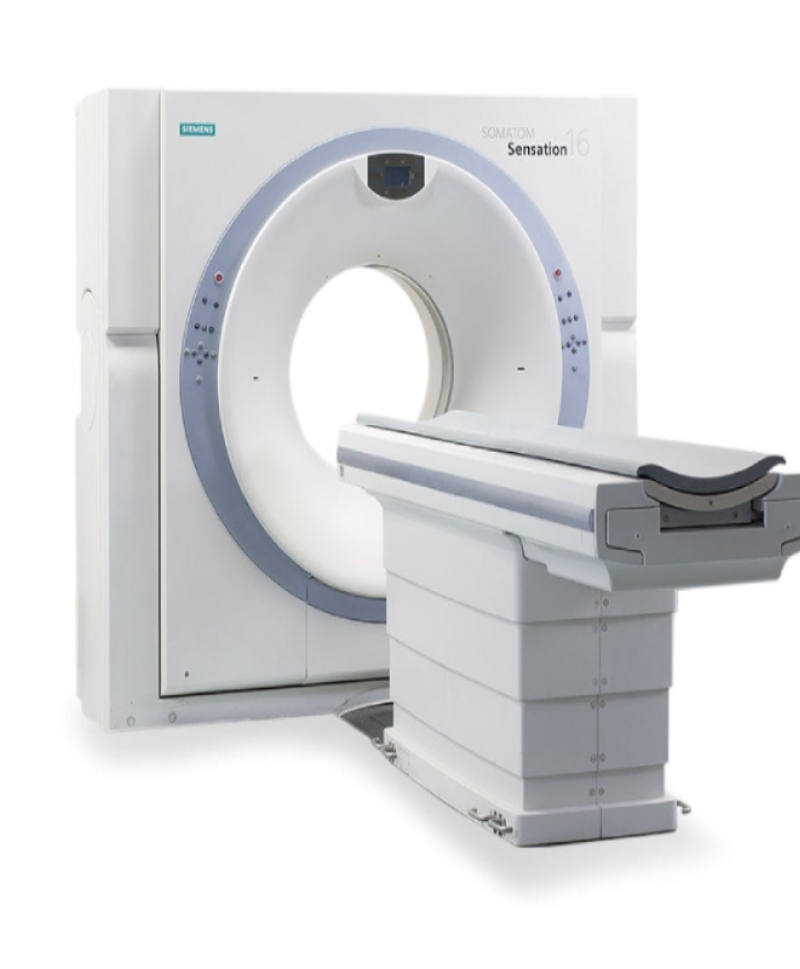

SPECIFICATION PARAMETER
No. of Slices 16 slices Brand Siemens Gantry Aperture 78cm Gantry tilt 30 -+ Scan Thickness 0.1-10mm Scan Speed 0.33-1.0sec Scan KVP 80,100,120,140kv Scan mA upto 500mA Tube Capacity 5.3 mhu Tube name AKRON Q /STARATION Detector Type multislice UFC Scan FOV 70cm Dicom YES Recommended Below 65 Case

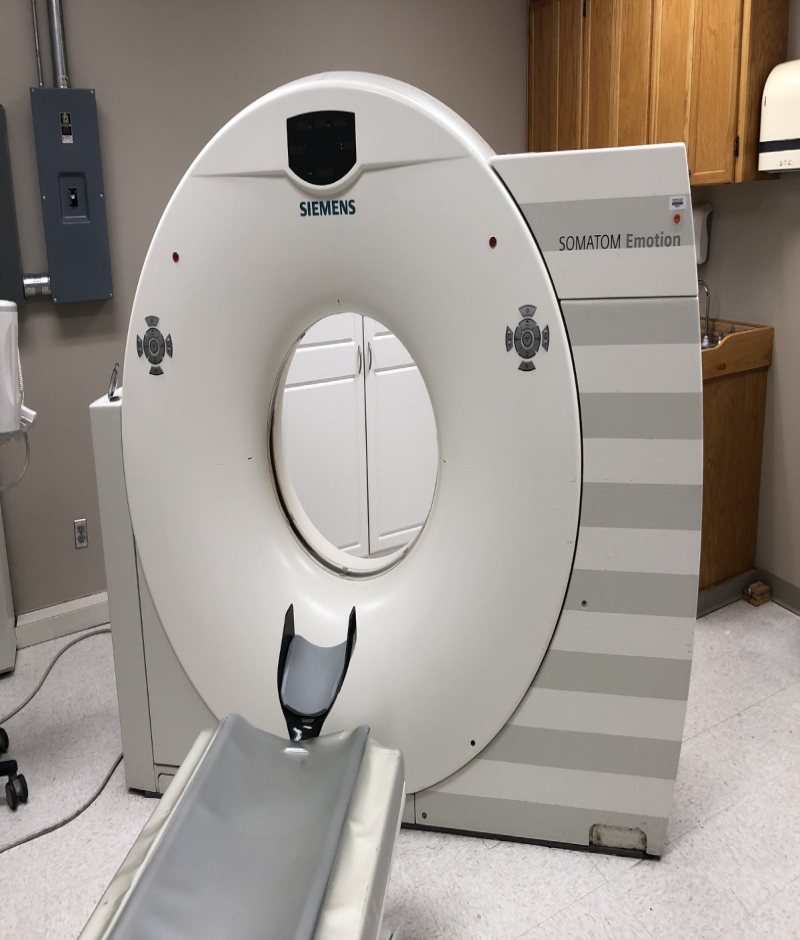

SPECIFICATION PARAMETER
Brand SIEMENS No. of slices 16 slices MODEL Somantom Emotion 16 Aperture(cm) 70 Dimensions, L x W: 243 x 54 cm Scan fields of view(cm) 50, extended 70 option Power rating (kW ) kV settings available 50, 80, 110, 130 Max. mA allowed for each kV 80 kV: 345 mA Tilt range (degrees) ±30 Line Voltage, VAC: 380, 400, 420, 440, 460, 480 Type (CONFIGURATION) High frequency Generation(SCANNER GANTRY) 3rd Tube cooling Oil/air X-RAY TUBE Anode heat capacity(MHU) 5
SPECIFICATION PARAMETER

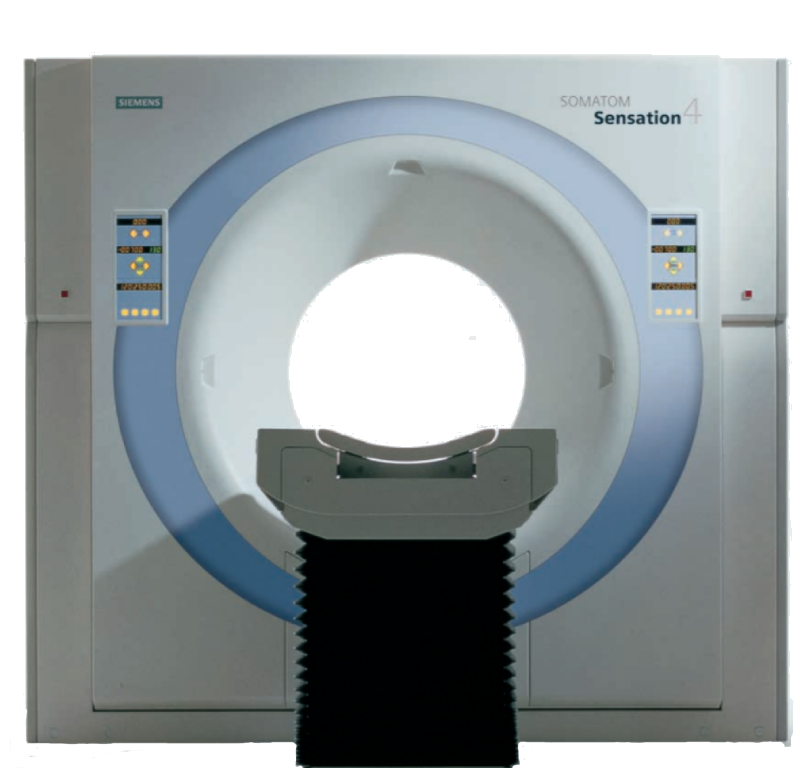

No. of Slices 4 slices Brand Siemens Gantry Aperture 78cm Gantry tilt 30 -+ Scan Thickness 0.1-10mm Scan Speed 0.5,1.0s,1.5 sec Scan KVP 80,110,130 Scan mA upto 500mA Tube Capacity 5.3 mhu Tube name AKRON B Detector Type UFC Scan FOV 70cm Dicom YES Recommended Below 50 Cases
SPECIFICATION PARAMETER
No. of Slices Dual slice Brand Siemens Gantry Aperture 70cm Gantry tilt 30 -+ Scan Thickness 0.1-10mm Scan Speed 0.5,1.0s,1.5 sec Scan KVP 80,110,130 Scan mA upto 240mA Tube Capacity 3.5 mhu Tube name DURA 352mv Detector Type UFC Scan FOV 70cm Dicom YES Recommended Below 40 Cases
SPECIFICATION PARAMETER
No. of slices Dual slice Brand Siemens Gantry Aperture 69cm Gantry tilt 25,30 -+ Scan Thickness 0.1-10mm Scan Speed 0.8,1.0s,1.5 sec Scan KVP 80,120,140 Scan mA upto 240mA Tube Capacity 2.0 mhu Tube name DURA 187 MV Detector Type UFC Scan FOV 69cm Dicom YES Recommended Below 40 Cases
SPECIFICATION PARAMETER

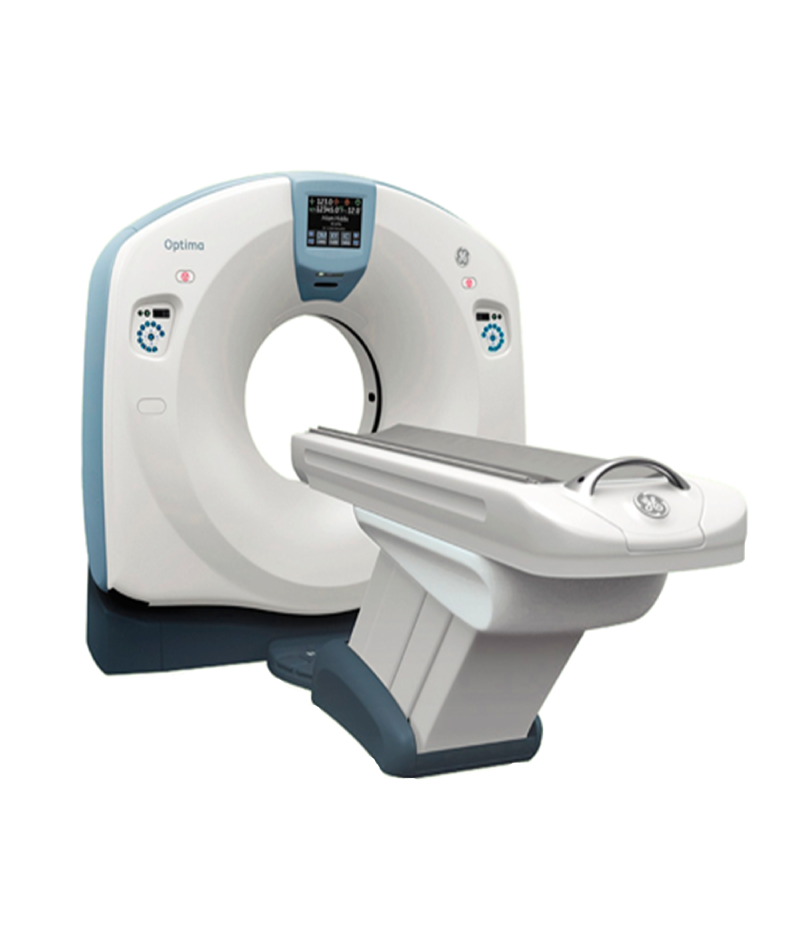

Number of slices 128 Brand GE ASIR + Minimum slice thickness(mm) 0.35 Minimum scan time(sec) 0.65,1,25,2.5,5mm Generator power (kW) 72 X-ray tube voltage (kV) 80-120 Gantry aperture (mm) 700 Couch horizontal movement: range of scanning (mm) Performix Pro 100
SPECIFICATION PARAMETER
Gantry Aperture 70cm Scan Thickness 30+ _ Scan Speed 0.65,1,25,2.5,5mm Scan KVP 80,100,120,140 Scan mA upto 700mA Tube Capacity 8mhu Tube Name Performix Pro 100 Detector Type Solid State array Scan FOV 50cm Dicom YES Recommended Below 80 Case
SPECIFICATION PARAMETER
Gantry Aperture 70cm Gantry tilt 30 Scan Thickness .625,1.25,2.5, Scan Speed 3.75,5,7.5,10MM 0.5,0.6,0.7,0.8,0.9,1,2,3 Scan KVP 80,100,120,140 Scan mA upto 440mA Tube Capacity 6.3 mhu Detector Type 16*912ROWS Scan FOV 25,50 Dicom In built Recommended Below 100 Cases
SPECIFICATION PARAMETER

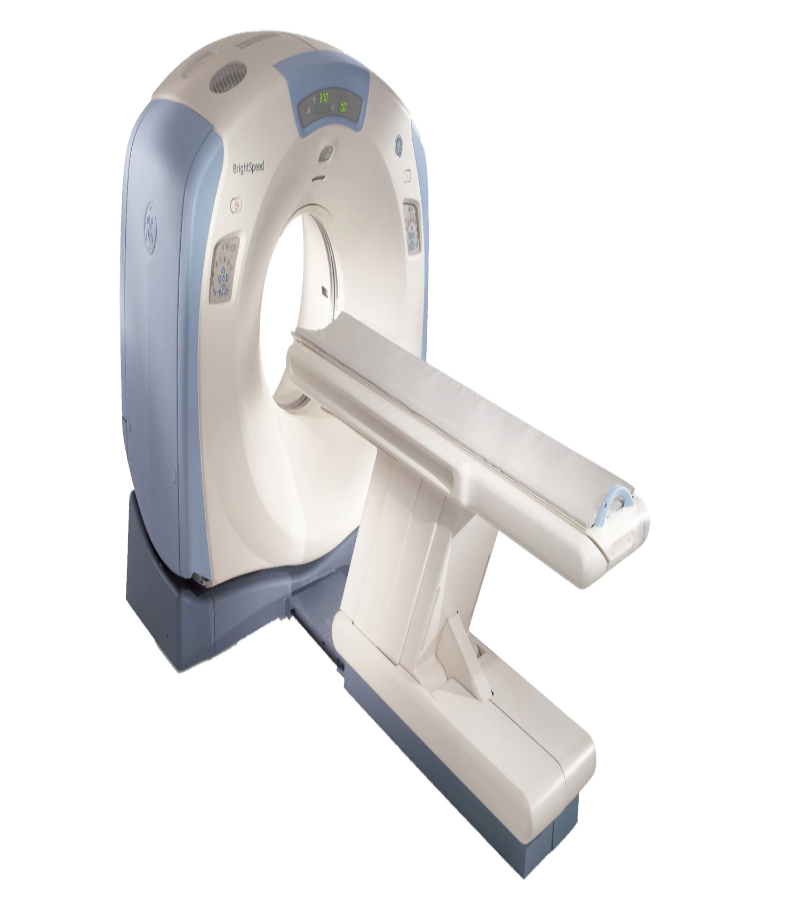

No. of slices 16 slices Brand GE Model name Bright speed 16 Type Helical Isotropic Upto 0.35mm Heat storage, MHU (X-RAY TUBE) 6.3 Heat dissipation rate, kHU/min (X-RAY TUBE) 840 Per slice,sec(Reconstruction time) Up to 16 frames/sec Kvp range (GENERATOR) 80, 100, 120, 140 Ma range (IMAGING SYSTEM) 10
SPECIFICATION PARAMETER

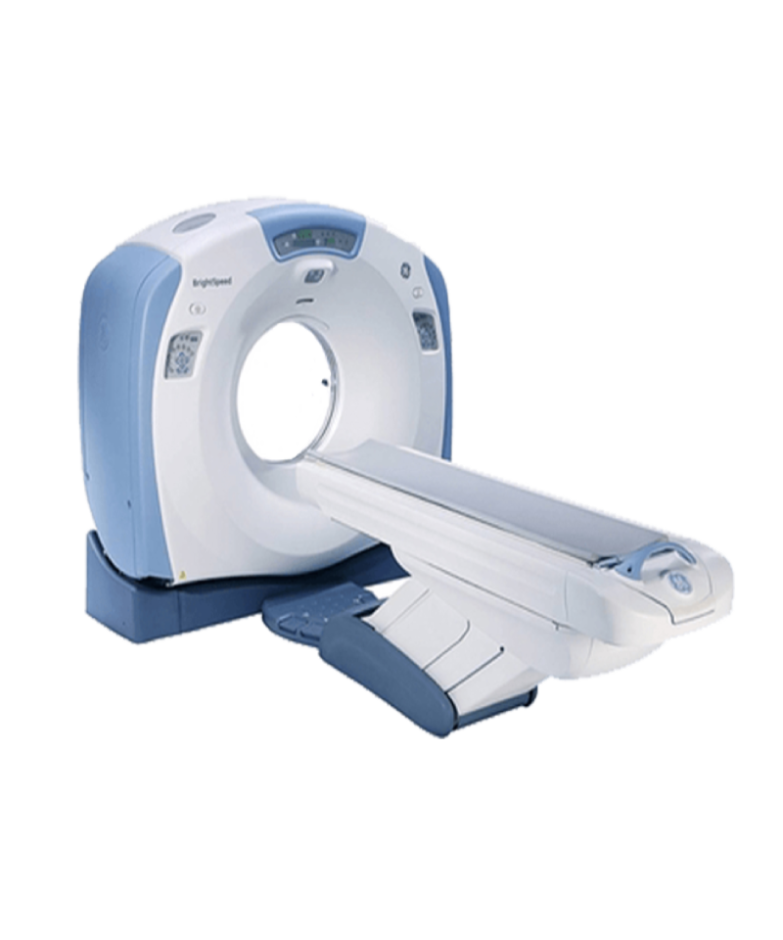

Brand GE No. of slices 16 slices MODEL Bright speed ELITE 16 Type Multislice Scanning range(cm) 170 Scan fovs(cm) 25, 50 POWER NEEDED 460/480 VAC, 50/60 Hz, 3-phase Gantry opening(cm) 70 Gantry angle deg ±30 Gantry size(cm) 188.2 x 222.3 x 100.6 Gantry weight(kg) 1269 Kvp range(generator) 80, 100, 120, 140 Tube cooling Oil/air X-RAY TUBE Heat storage(MHU) 6.3
SPECIFICATION PARAMETER
Gantry Aperture 70cm Gantry tilt 30 Scan Thickness .625,1.25,2.5,3.75,5,7.5,10mm Scan Speed 0.5,0.6,0.7,0.8,0.9,1.2,3 Scan KVP 80,100,120,140kv Scan mA upto 440mA Tube Capacity 6.3 mhu Detector Type 8*912 ROWS Scan FOV 25,50 Dicom In built Recommended Below 75 Case

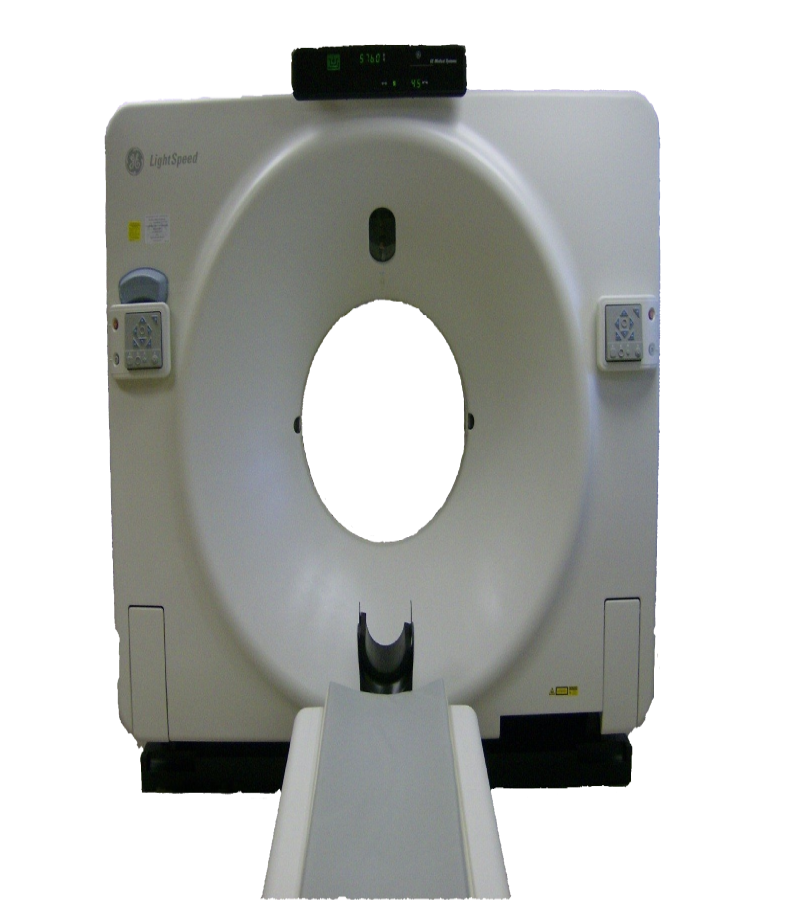

SPECIFICATION PARAMETER
Gantry Aperture 70cm Gantry tilt 30 Scan Thickness 0.5,0.6,0.7,0.8,0.9,1,2,3,4 Scan Speed 0.63,1.25,2.5,3.75,7.5,10sec Scan KVP 80,100,120,140kv Scan mA upto 440mA Tube Capacity 6.3 mhu Detector Type four rows of HR detectors Scan FOV 18,25,42,50cm Dicom In built Recommended Below 50 Case
SPECIFICATION PARAMETER
Gantry Aperture 65/70cm Gantry tilt 30 Scan Thickness 1,2,3,4,5,7,10mm Scan Speed 0.8,1,1.5,2,3sec Scan KVP 80,120,140kv Scan mA upto 350mA Tube Capacity 2/3.5/6.3 mhu Detector Type solid state detectors Scan FOV 18,25,42,50cm Dicom In built Recommended Below 30 Case
SPECIFICATION PARAMETER
Gantry Aperture 70cm Gantry tilt 300 Scan Thickness 0.5,1,2,3,4,5,6,7,10 mm Scan Speed 0.7,1,1.5,2,3sec Scan KVP 80,120,140kv Scan mA upto 440mA Tube Capacity 6.3 /3.5/2.0 mhu Detector Type Two rows of HR detectors Scan FOV 18,25,35,50cm Dicom In built Recommended Below 40 Case
SPECIFICATION PARAMETER
Gantry Aperture 68cm Gantry tilt 25 Scan Thickness 1,2,3,4,5,7,10 mm Scan Speed 1.5,2,3sec Scan KVP 80,120,140kv Scan mA upto 350mA Tube Capacity 3.5 mhu Detector Type Solid State/xemon Scan FOV 25,35,42,50cm Dicom Optical Recommended Below 25 Case

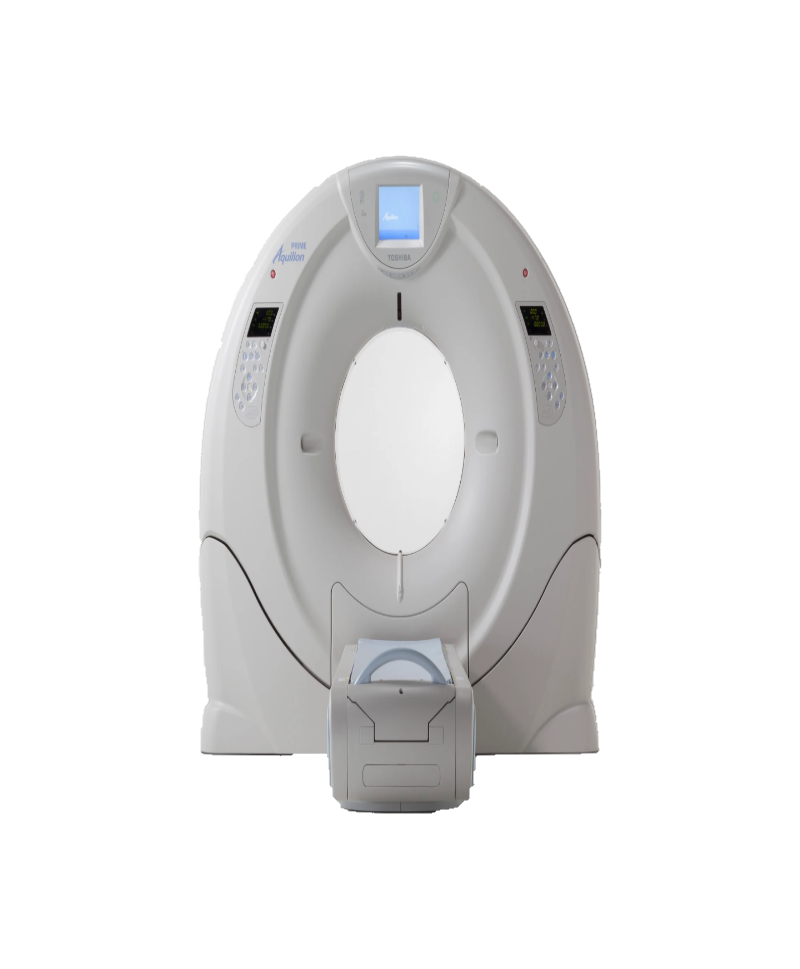

SPECIFICATION PARAMETER
No. of slices 160 MODEL Aquilion PRIME-160 Series Type Multislice helical Noise kernel FC18 Number of channels 80 Scan fovs(cm) 18, 24, 32, 40, 50 Scanning range(cm) 200 Iterative image reconstruction AIDR 3D Gantry angle(deg) +/-22 Gantry size(cm) 203 x 243 x 107 Gantry weight(kg) 2,530 Kvp range 80, 100, 120, 135 X-RAY TUBE Heat storage(MHU) 7.5 Max scan time at max ma(sec) 600, 40
SPECIFICATION PARAMETER

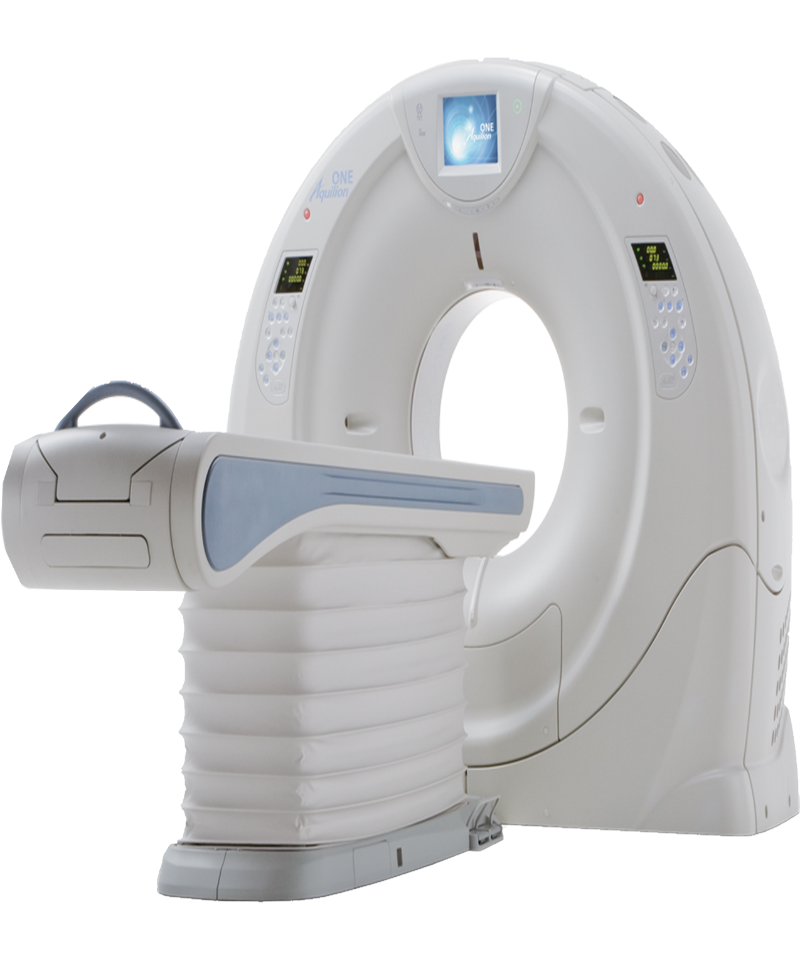

Brand TOSHIBA No. of slices 320 MODEL Aquilion ONE-320 Series Type Dynamic volume CT Scanning range(cm) (Range of movement) 200 Scan fovs(cm) 18, 24, 32, 40, 50 POWER NEEDED 380, 400, 420, 440, 460 or 480 VAC, 50/60 Hz, 3-phase Gantry opening(cm) 72 Gantry angle(deg) +/-22 Gantry size(cm) 243 x 107 x 203 Gantry weight(kg) 2700 Kvp range(generator) 80, 100, 120, 135 X-RAY TUBE Heat storage(MHU) 7.5
SPECIFICATION PARAMETER

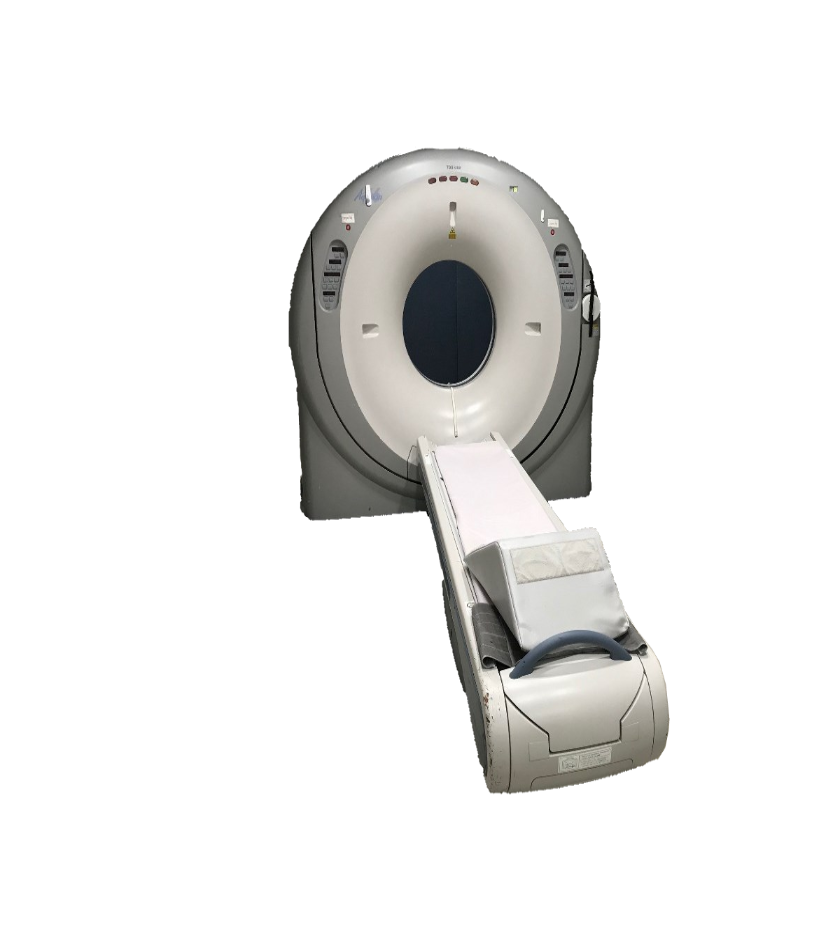

Brand TOSHIBA No. of slices 16 MODEL Aquilion 16 Type Multislice helical CT Scanning range(cm) 180 Scan fovs(cm) 18, 24, 32, 40, 50 POWER NEEDED 200 VAC, 50/60 Hz, 3-phase Gantry opening(cm) 72 Gantry angle(deg) ±30 Gantry size(cm) 195 x 233 x 96 Gantry weight(kg) 1750 Kvp range(generator) 80, 100, 120, 135 Ma range(Imagesystem) 1010-50 in 5 mA steps X-RAY TUBE Heat storage(HU) 7500000
SPECIFICATION PARAMETER

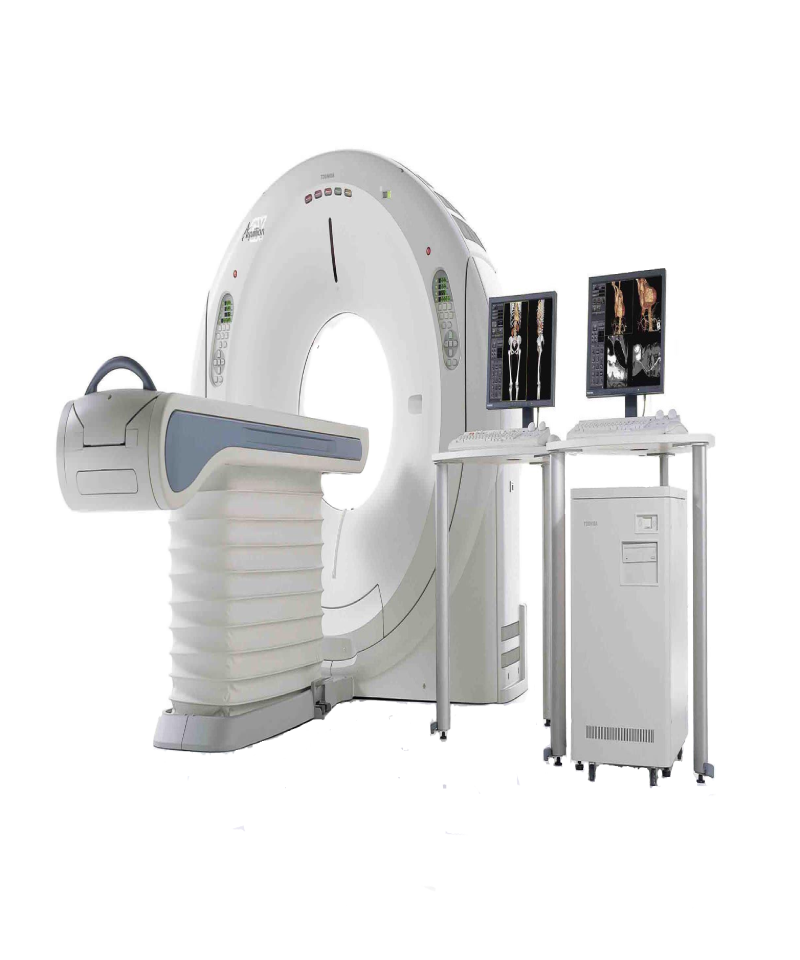

Brand TOSHIBA No. of slices 128 MODEL Aquilion CX Type Multislice helical Scanning range(cm) 200 Scan fovs(cm) 18, 24, 32, 40, 50 POWER NEEDED 200 VAC, 50/60 Hz, 3-phase Gantry opening(cm) 72 Field of view 50 Gantry size(cm) 195 x 233 x 96 Gantry weight(kg) 1750 Kvp range(generator) 80, 100, 120, 135 Tube cooling Oil/air X-RAY TUBE Heat storage(MHU) 7.5

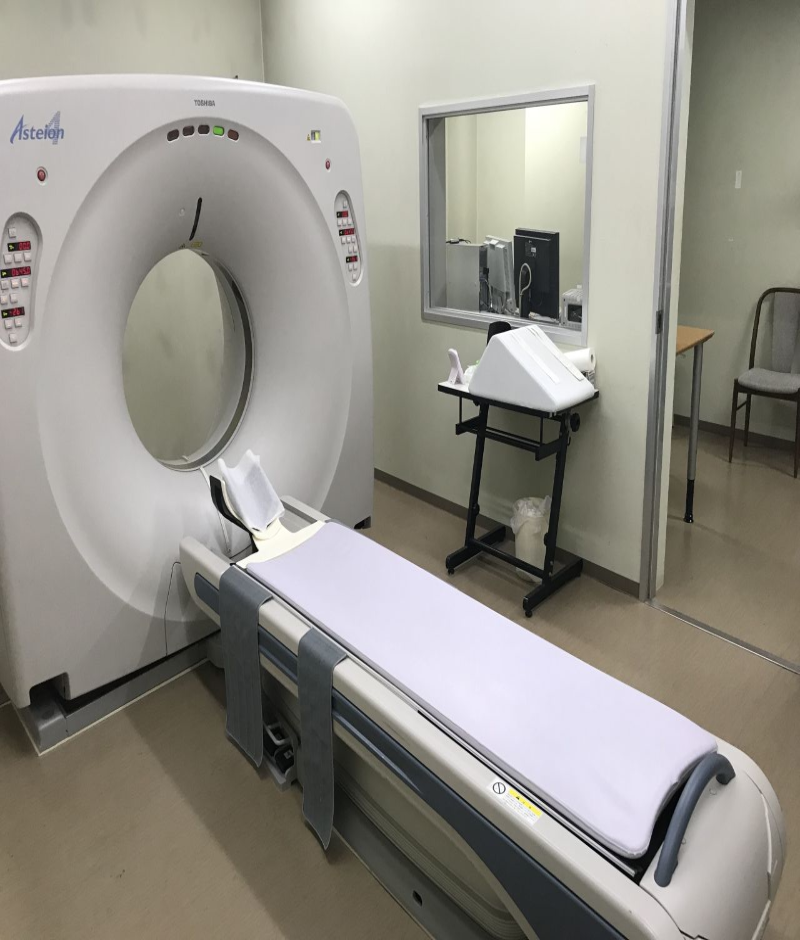

SPECIFICATION PARAMETER
Brand TOSHIBA No. of slices 4 MODEL Asteion Super 4 Type Multislice helical Scanning range(cm) 180 Scan fovs(cm) 18, 24, 32, 40, 50 POWER NEEDED 200 VAC, 50/60 Hz, 3-phase Gantry opening(cm) 72 Gantry angle (deg) ±30 Gantry size(cm) 176 x 197 x 89 Gantry weight(kg) 1300 Kvp range(generator) 80, 120, 135 Tube cooling Oil/air X-RAY TUBE Heat storage(HU) 40000
SPECIFICATION PARAMETER

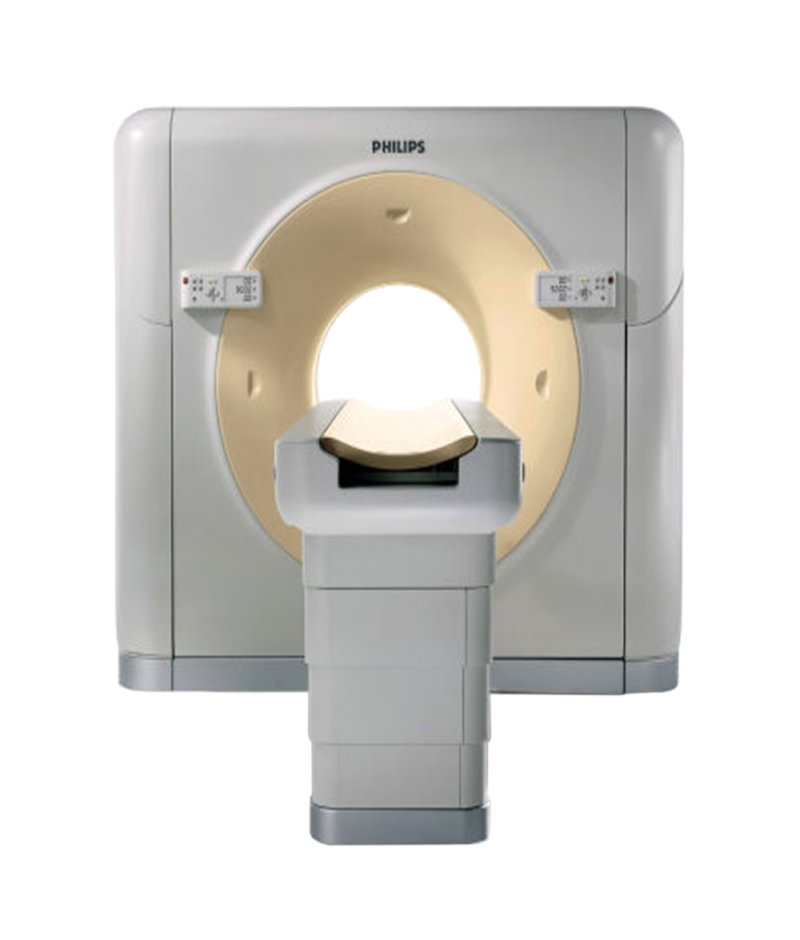

Brand PHILIPS No. of slices 16 MODEL Brilliance 16-slice Type Multislice delete helical Scanning range(cm) 162 Scan fovs(cm) up to 50 POWER NEEDED 200-500 VAC, 50/60 Hz, 3-phase Gantry opening(cm) 70 Gantry angle (deg) ±30 Gantry size(cm) 205 x 229 x 98 Gantry weight(kg) 2100 Kvp range(generator) 90, 120, 140 Tube cooling Oil/air X-RAY TUBE Heat storage(HU) 80000

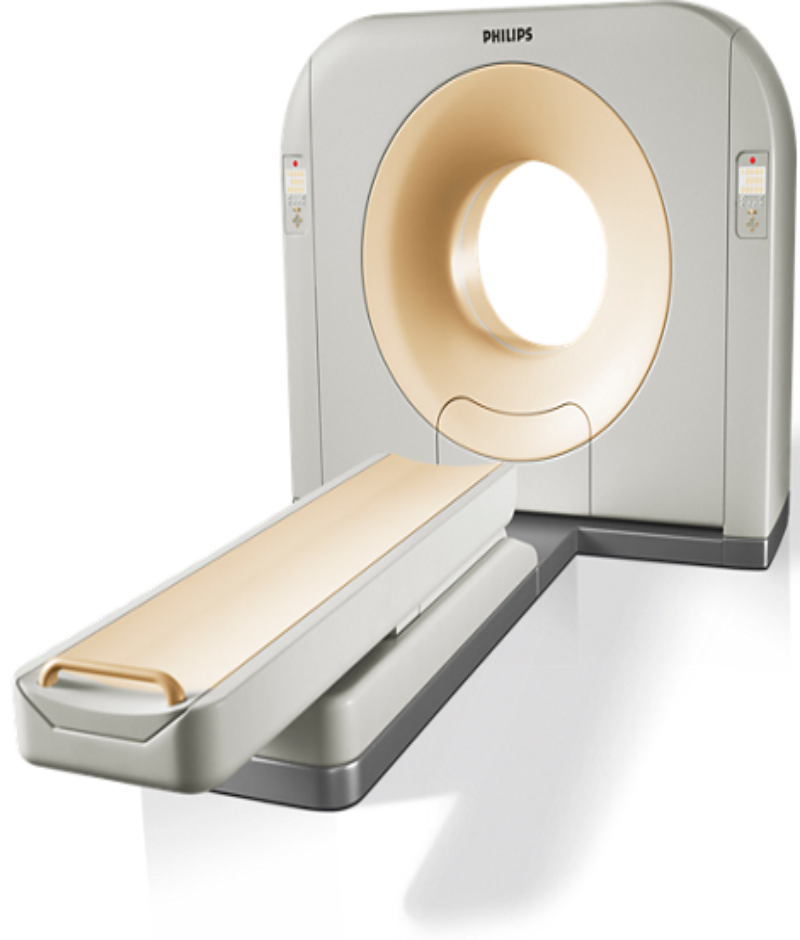

SPECIFICATION PARAMETER
Brand Philips MODEL MX16 EVO Type Multislice No. of Slices 16 slices No. of channels 16 Gantry Aperture 78cm Gantry angle(deg) +/-30 Gantry size(cm),hxwxd 189 x 221 x 89 Gantry weight(kg) 1,900 Gantry opening(cm) 70 Heat storage(MHU) 5 Output(kw) 50 Kvp range 90, 120, 140 Ma range 30-420 Scan fovs(cm) <=50
SPECIFICATION PARAMETER

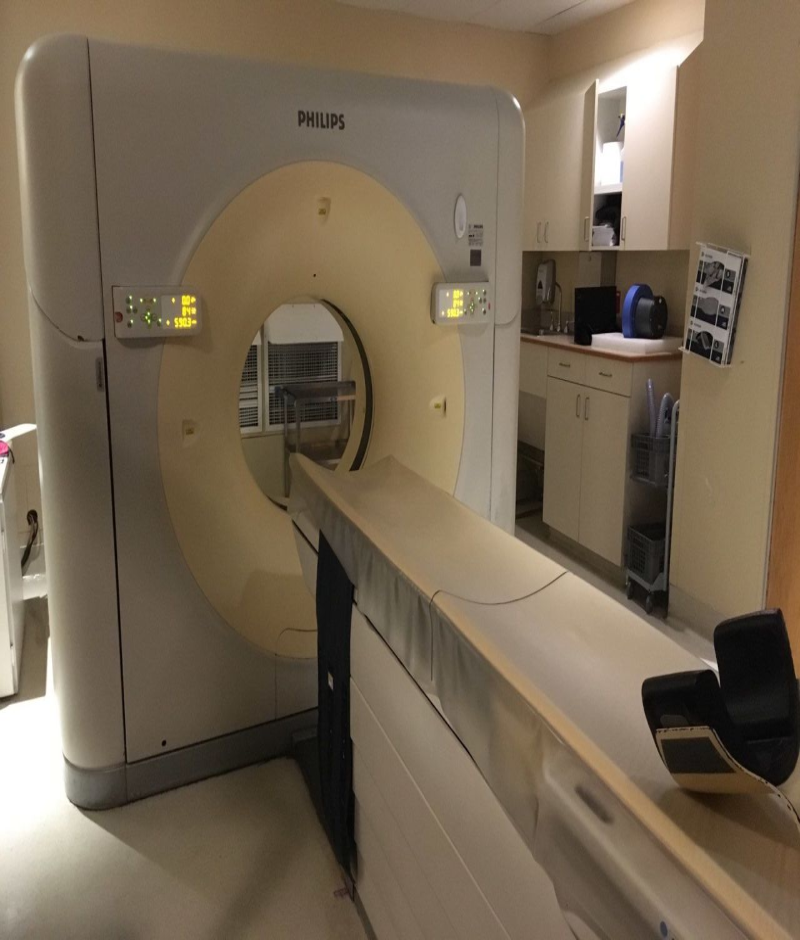

Brand PHILIPS No. of slices 64 MODEL Brilliance 64-slice Type Multislice Scanning range(cm) 162 Scan fovs(cm) up to 50 POWER NEEDED 200-500 VAC, 50/60 Hz, 3-phase Gantry opening(cm) 70 Gantry angle (deg) ±30 Gantry size(cm) 203 x 239 x 94 Gantry weight(kg) 1764 Kvp range(generator) 80, 120, 140 Tube cooling Oil/air X-RAY TUBE Heat storage(HU) 80000

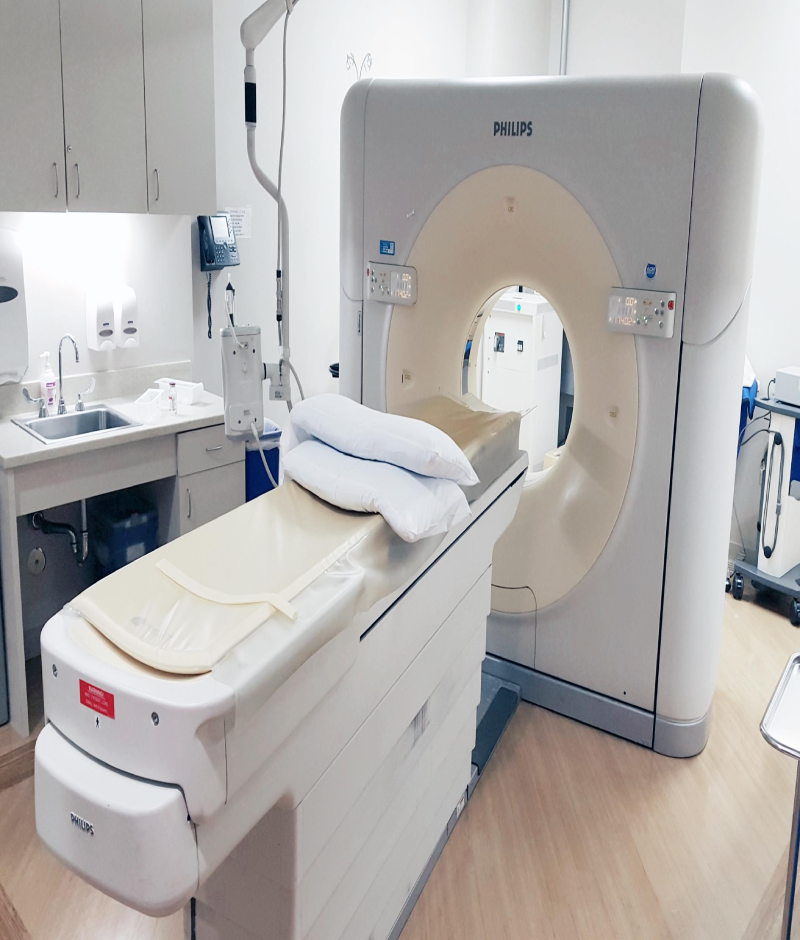

SPECIFICATION PARAMETER
Brand PHILIPS No. of slices 40 MODEL Brilliance 40-slice Type Multislice Scanning range(cm) 162 Scan fovs(cm) up to 50 POWER NEEDED 200-500 VAC, 50/60 Hz, 3-phase Gantry opening(cm) 70 Gantry angle (deg) ±30 Gantry size(cm) 203 x 239 x 94 Gantry weight(kg) 1764 Kvp range(generator) 80, 120, 140 Tube cooling Oil/air X-RAY TUBE Heat storage(HU) 80000 Slice thickness(mm) 0.5-10 variable

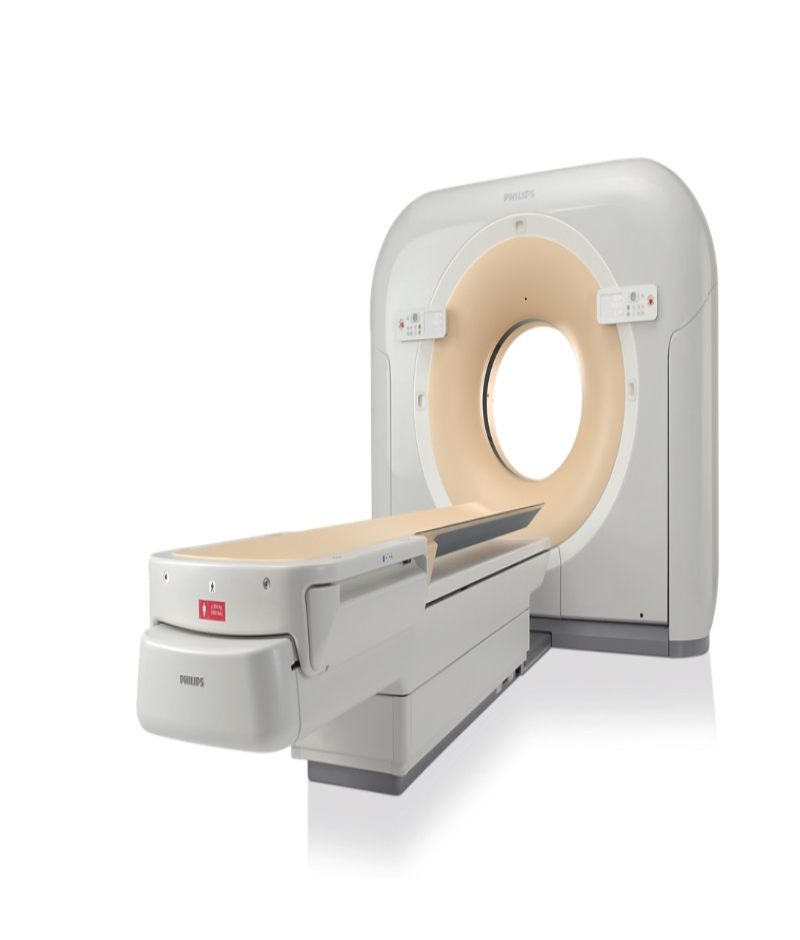

SPECIFICATION PARAMETER
Brand Philips MODEL INGENUITY CORE 128 Anode Heat Storage Capacity 8 MHU Tube cooling system Air cooled Generator power 80 kW KV selections 80, 100, 120 & 140kV mA Range 20 - 665 mA Gantry Aperture 70 cm Gantry dimensions (h x w x d),cm 203 x 239 x 94 Gantry weight(kg) 1941 Slices 128 Scanning range(cm) 200 Number of detector rows 64 Number of slice per rotation 128 Tilt ± 30° in 0.5° increment
